How a Utility Is Tapping Innovation for 23x More Storage

At a site believed to be an inspiration for John Muir, a growing city replaces a 75-year-old water tower with a double-reservoir system to better serve residents.



Planning for a thirsty neighborhood

The neighborhood’s original water tower, a small 55,000-gallon tank built to serve a tuberculosis hospital, was constructed in 1938. Since that time, the surrounding land has developed significantly — what once hosted the forests and fields that inspired John Muir is now a growing, and thirsty, residential neighborhood.

When their Master Plan identified a need for 300,000 gallons of water storage for emergency and firefighting reserves, as well as an additional one million gallons of water storage for local residents, the City of Madison Water Utility had to make an economical and sustainable decision to replace the undersized 55,000-gallon tank. To make matters more complex, the water tower site is also home to a nature conservancy, called Lake View Hill. The land around the water tower is a treasured destination for neighborhood hikers, walkers and wildlife enthusiasts.

Balancing cost, footprint and reliability

How do you increase storage capacity and improve pressure without impacting environmental and ecological assets in the area? And how do you get the right water pressures to both nearby and more distant residents? To answer these questions, the City of Madison selected an SEH team led by project manager Randy Sanford.

We looked closely at three alternatives. But, after a thorough lifecycle cost analysis, the choice was clear.
Randy Sanford, SEH Project Manager

Three possible solutions were explored. Each with different levels of initial cost, footprint and reliability. They included:

  • Building another tower on a different site
  • Supplementing a single tower with a pump station
  • Designing a single tower with two separate reservoirs

With goals taken from the utility, as well as the surrounding community through a series of meetings, the team put together a decision matrix to rationalize the decision-making process.

Scored on a point system, the most desirable alternative — building the dual-zone reservoir with different pressure zones — had the highest capital cost. But, when compared against the 50-year lifecycle costs, the operational costs were 20 percent lower, which offset higher capital costs.

The team selected the dual-zone reservoir design. It’s the first in Wisconsin and one of only a handful in the entire country.

Maximum water, minimum impact. With two reservoirs stacked atop one another, the Lake View dual-zone water tower design minimizes impact to a popular urban greenspace.



Choosing a natural, low-maintenance color

A water tower is more than a reservoir; it’s a statement on the skyline. While its color can be justified with any number of reasons — blue to blend in with the sky, white to look clean, silver for a retro feel — the design team and owner collaborated with citizens and instead choose not one, but two different shades of tan.

And they did it for two reasons: aesthetics and maintenance.

Not only did the tan color fit with the natural character and context of the surroundings, it was also a better choice for long-term maintenance. Here’s why: every tower experiences condensation on the outer bowl. This condensation creates a perfect environment for mold, which is black, so, though many communities choose white for its clean look, the mold eventually finds its way on the surface of the bowl, discoloring the tank and requiring cleaning. With a tan tank, mold will not be able to make its mark. In fact, the tower has a slightly darker shade of tan on the upper reservoir to cloak any mold that may grow on it.

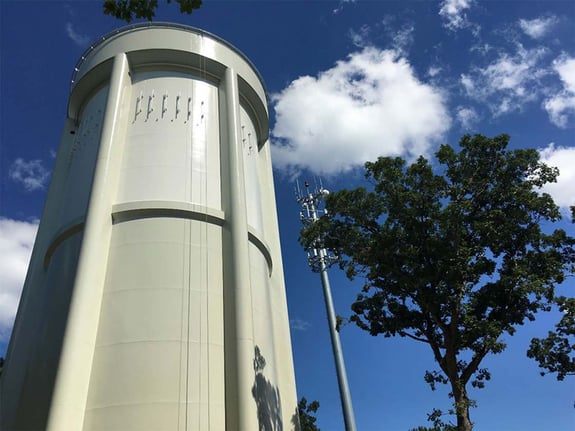

Two is better than one. The 1.3-million-gallon dual-zone water storage tank was painted two different shades of tan to reduce maintenance.

Keeping telecom up

Found on water towers due to their high altitude, telecommunications facilities can complicate any water tower rehabilitation or replacement. For this project, the plan allowed for a space to hold a monopole, where all eight private carriers could conveniently relocate their facilities. After construction, the carriers will be able to reattach their telecommunications equipment. The intended result? No interruption of cellular services for residents and, importantly, no hassle for the owner.

Bringing it all together

By planning ahead, making sensible choices, and incorporating the voice of their community and residents, the City of Madison Water Utility has delivered its residents a cost-effective project that not only improved service, but also wisely positioned their community for the next century.

About the Expert

Randy Sanford

Randy Sanford, PE, is a water engineer, project manager and stalwart for sensible solutions for aging water infrastructure. Contact Randy
